GUI overview

DeepLabCut-live-GUI (dlclivegui) is a PySide6-based desktop application for running real-time DeepLabCut pose estimation experiments with one or multiple cameras, optional processor plugins, and video recording (with or without overlays).

This page gives you a guided tour of the main window, explains the core workflow, and introduces the key concepts used throughout the user guide.

---

Main window at a glance

Important

Remember to activate your virtual/conda environment and launch the application with dlclivegui (or uv run dlclivegui) after installation.

When you first launch the application, you will see the main window with three primary areas:

• A Controls panel (left) for configuring cameras, inference, recording, and overlays

• A Video panel (right) showing the live preview (single or tiled multi-camera)

• A Stats area (below the video) summarizing camera, inference, and recorder performance

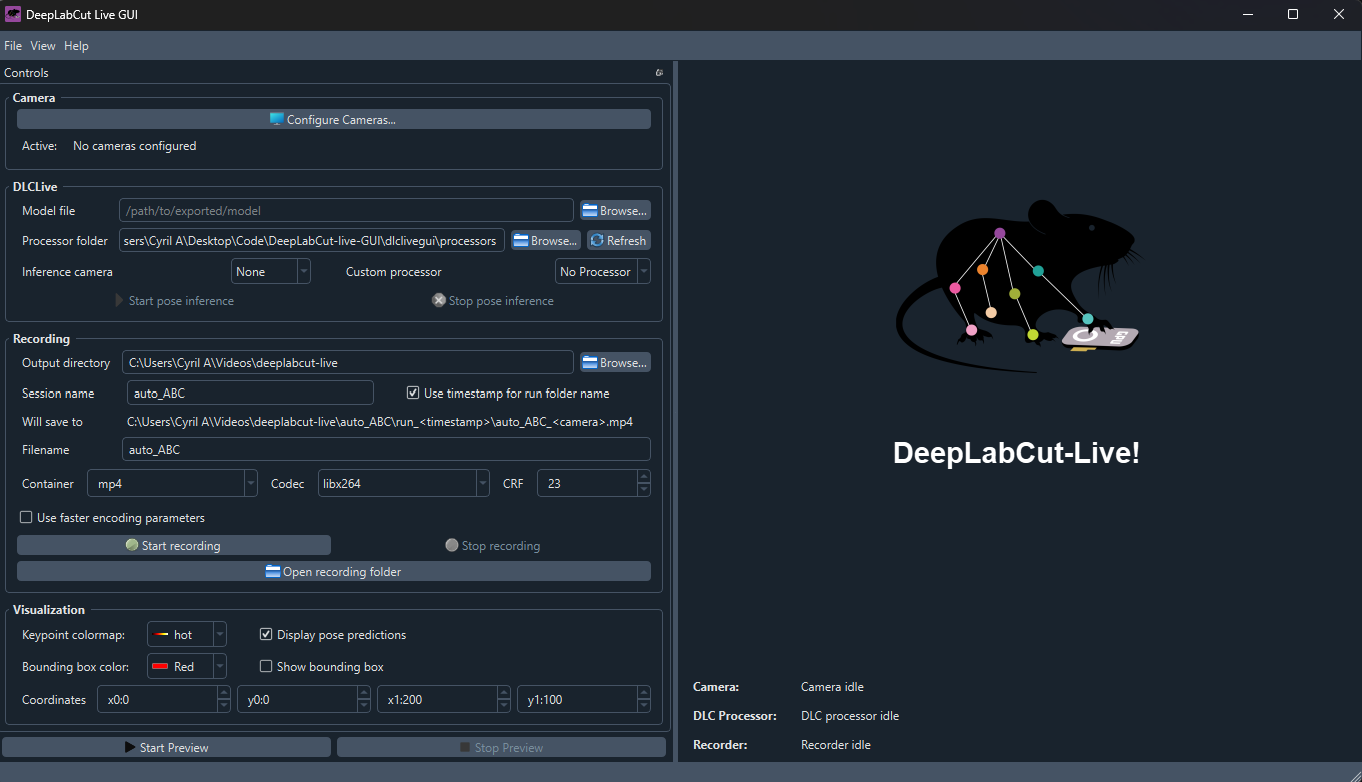

Fig. 1 The main window on startup, showing the Controls panel (left), Video panel (right), and Stats area (below video).

---

Intended workflow

On startup, the GUI is idle and waiting for you to configure cameras and settings, as well as pick a model for pose inference.

To start running an experiment, the typical workflow is:

1. Configure Cameras

   • Use Configure Cameras… to select one or more cameras and their parameters.

   • See Camera support for details on supported camera backends and troubleshooting.

2. Start Preview

   • Click Start Preview to begin streaming all selected configured cameras.

   • If multiple cameras are active, the preview becomes a tiled view.

3. Start Pose Inference (when ready)

   • Choose a Model file, optionally a DLC-live Processor[1], select the Inference Camera, then click Start pose inference.

   • Toggle Display pose predictions to show or hide pose estimation overlays.

4. Start Recording (when ready)

   • Choose an Output directory, session/run naming options, and encoding settings, then click Start recording.

   • Recording includes all active cameras in multi-camera mode in separate files.

5. Stop

   • Use Stop Preview, Stop pose inference, and/or Stop recording as needed.

Note

Pose inference requires the camera preview to be running.

If you start pose inference while the preview is stopped, the GUI will automatically start the preview first.

---

Main control panel

The main control panel on the left is where you configure all the settings for cameras, pose inference, recording, and visualization.

Tip

You can “undock” the control panel by dragging it by the title bar, allowing you to move it to a second monitor or give more space to the video preview if needed.

Camera settings

Purpose: Define which cameras are available and active.

• Configure Cameras… Opens the camera configuration dialog where you can:

  • Add, enable, or disable cameras

  • Select backend and index

  • Adjust camera-specific properties

  • Switch between single- and multi-camera setups

Important

Depending on the system, backend and camera model, settings may vary widely between proper support, partial support, or no support at all.

This is especially true for the generalist OpenCV backend, which may work well with some cameras but not others.

• Active Displays a summary of configured cameras:

  • Single camera: Name [backend:index] @ fps

  • Multiple cameras: N cameras: camA, camB, …

Important

In multi-camera mode, pose inference runs on one selected camera at a time (the Inference Camera), even though preview and recording may include multiple cameras.

---

DLCLive settings

Note

DLCLive stands for DeepLabCut Live, the real-time pose estimation engine that powers the inference capabilities of this application.

Find more information here if needed: Running DeepLabCut models in real-time.

Purpose: Configure and run pose inference on the live stream.

• Model file Path to an exported DeepLabCut-Live model file (e.g. .pt, .pb). We provide some pre-trained models, see Pre-trained models for details.

• Processor folder / Processor (optional) Processor plugins extend functionality (providing ways to setup experiment logic or external control).[1]

• Inference Camera Select which active camera is used for pose inference. In multi-camera preview, pose overlays are drawn only on the corresponding tile.

• Start pose inference / Stop pose inference The button indicates inference state:

  • Initializing DLCLive! → Model loading

  • DLCLive running! → Inference active

• Allow processor-based control (optional) Allows compatible processors to have control over several aspects of the experiment, such as starting/stopping recording or triggering external devices.[1]

• Processor Status Displays processor-specific status information when available.

---

Recording

Purpose: Save videos from active cameras, optionally with pose overlays.

Note

Timestamps are additionally saved in a JSON file alongside the video, providing precise timing information for when each frame was processed. See Video timestamp format for details.

Recording output options

• Output directory: Base directory for all recordings

• Session name: Grouping of runs (e.g. mouseA_day1)

• Use timestamp for run folder name:

  • Enabled → run_YYYYMMDD_HHMMSS_mmm

  • Disabled → run_0001, run_0002, …

A live preview label shows the approximate output path, including camera placeholders.

Tip

You can hover over the preview path to see the full path, and click to copy it to the clipboard.

Encoding options

• Container (e.g. mp4, avi, mov)

• Codec (availability depends on OS and hardware)

• CRF (quality/compression tradeoff; lower values = higher quality)

Controls

• Start recording / Stop recording Controls the recording state.

• Open recording folder Shows the current session’s output directory in the system file explorer.

Additional options

• Record video with overlays Include pose predictions and/or bounding boxes directly in the recorded video.

  Danger

  This cannot be easily undone once the recording is saved.

  Use with caution if you want to preserve raw footage intact.

About frame size mismatches

Warning

Frame size must remain constant for a recording session. If the recorder is configured with an expected frame_size and a frame with a different size is written, the recorder enters an error state to prevent encoder corruption:

• The mismatched frame is rejected (write(...) returns False)

• Subsequent write(...) calls will raise an exception indicating encoding failed

• Stop the recorder and start a new recording after fixing the frame size

Note

Frames are converted automatically for encoding:

• Non-uint8 frames are scaled/clipped into the uint8 range.

• Grayscale frames (H x W) are expanded to 3 channels (H x W x 3).

• Frames are made contiguous in memory before being passed to the encoder.

---

Visualization settings

Purpose: Configure the keypoint colormap, bounding box, and other overlay options.

• Keypoint colormap: Choose a predefined colormap for keypoint visualization

• Display pose predictions: Toggle keypoint overlay on the video preview, but not in recordings (unless “Record video with overlays” is enabled)

• Show bounding box: Enable or disable overlay

• Coordinates: x0, y0, x1, y1

In multi-camera mode, the bounding box is applied relative to the inference camera tile, ensuring correct alignment in tiled previews.

Tip

To adjust the bounding box intuitively, hover over a coordinate field (x0, y0, x1, y1) and drag horizontally.

---

Video Panel and Stats

Video preview

• Displays a logo screen when idle

• Shows the live video feed when preview is running

• Uses a tiled layout automatically when multiple cameras are active

Stats panel

Three continuously updated sections:

• Camera: Per-camera measured frame rate

• DLCLive Inference: Inference throughput, latency, queue depth, and dropped frames

• Recorder: Recording status and write performance

Tip

Stats text can be selected and copied directly from the GUI

---

Menu bar actions

Menu actions are available from the menu bar at the top of the application window.

File menu

• Load configuration… Load an existing JSON configuration file.

• Save configuration Save the current application settings.

• Save configuration as… Save the current settings under a new file name.

• Open recording folder Open the output directory for the current session.

• Close window Close the application window.

Configuration files store camera configurations, model paths, recording options, and other application settings.

View → Appearance

• Show controls Toggle visibility of the left-side control panel.

• System theme Use the default system appearance.

• Dark theme Enable the application’s dark theme.

Keyboard Shortcuts

• Ctrl+O: Load configuration

• Ctrl+S: Save configuration

• Ctrl+Shift+S: Save configuration as…

• Ctrl+Q: Quit application

---

Configuration and Persistence

The GUI can restore settings across sessions using:

• Explicitly saved JSON configuration files

  • Load manually from the File menu or with Ctrl+O.

• A stored snapshot of the most recent configuration (if saved)

  • The last-saved configuration is automatically loaded on startup if available

• Remembered paths (e.g. last-used model directory)

On startup, the application attempts to restore your last‑used settings if saved, but you can always manually load and save configurations.

Tip

For reproducible experiments, prefer saving the configuration files rather than relying on the remembered application state snapshot.

---

[1] (1,2,3)

Processors are optional Python plugins that can be loaded by the application to extend its functionality, provided by DLC-Live. They can provide custom logic for controlling the experiment, such as starting/stopping recording based on specific conditions, sending triggers to external devices, or implementing closed-loop control based on pose estimation results. You can find documentation on how to write your own processor in the dlclivegui.processors folder, along with example processors that demonstrate some of these features.
